VACUUM LEAK DETECTORS
NOTE:
Price indicated on all leak detectors, except those offered "as is" include Overhaul & calibrations.
E. McGrath Inc, 35 Osborne St,
Salem MA 01970
ALCATEL
|
VLD105
|
Alcatel
ASM 110T cart-mounted turbo pump, sniffer & 11 CFM rough pump
|
$10,250
|
|
VLD106 |
Alcatel ASM 10 cart-mounted with sniffer probe & 3.2 cfm roughing pump |
$7,250 |
|

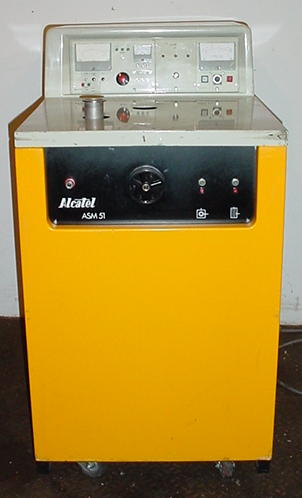

VLD110
|
Alcatel
ASM51 roll around console semi-automatic with 11 CFM rough pump
|
$9,250
|
CEC/DUPONT
|
VLD120 |
CEC 24-120B cart mounted leak detector with 24-038 test port station and 17 CFM
roughing pump. 120 volts Add $825 for the remote |
$6,250 |
|
VLD125 |
24-120B cart-mounted leak detector
PIX2 Add $825 for the remote |
$5,200 |
EDWARDS
|

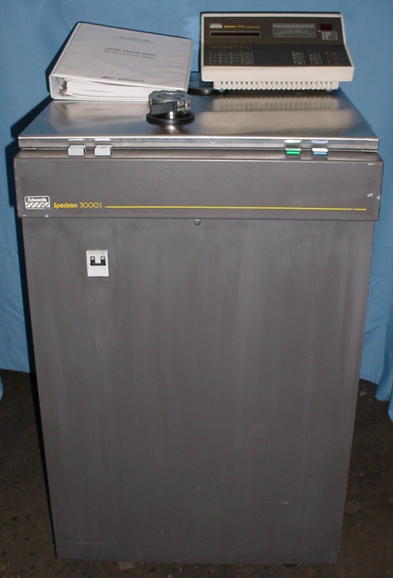

VLD140
|
Edwards
Spectron 3000S roll around console w/ 3100 process control module & 2 rough pumps
|
$10,500
|
|
VLD160
|
Edwards
Spectron 3000X roll around console ultra-sensitive w/ 3200 process control module & two rough pumps
|
$12,500
|
LEYBOLD
|
VLD180
|
Leybold
Ultratest F roll around console w/ two rough pumps
|
$7,850
|
|
|
|
|
|
|
ULVAC |
|
|
VLD190 |
Ulvac DLMS-531-3A helium leak detector, Balzers turbo with Varian SD-90 pumps.
Cart mounted with instruction manual New Arrival |
POR |
VARIAN/NRC
|
VLD220
|
Varian
925-20 electronics & SPEC. tube only
|
$3,250
|
|
VLD240
|
Varian
925-20 cart mounted w/ diffusion pump LN2 trap & 0.9CFM rough pump
|
$5,450
|
|
VLD260
|
Varian
925 roll around console
|
$6,500
|
|
VLD280
|
Varian
925VFT roll around console w/ fast test module
|
$8,000
|
|
VLD320
|
Varian
936-60 roll around console w/ belt drive rough pumps
|
$7,950
|
|
VLD340
|
Varian
936-66 roll around console w/ digital auto ranging & Alcatel direct drive pumps
|
$11,500
|
|
VLD360
|
Varian
936-66SP roll around console w/ digital auto ranging & Alcatel direct drive pumps
|
$12,500
|
|
VLD380
|
Varian
936-70 roll around console No LN2 w/ belt drive rough pumps
|
$9,850
|
|

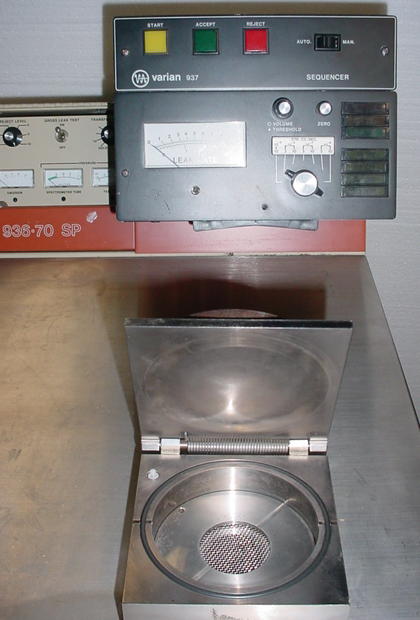

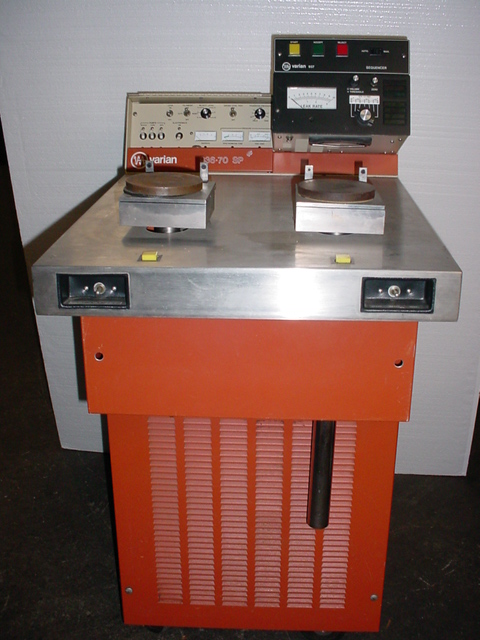

VLD390 |
Varian 936-70SP helium leak detector, with dual quick test chambers for device
testing. No LN2 115 volts. Varian direct drive mechanical pumps.
PIX2 New
Arrival |
POR |
|
VLD400
|
Varian
936-71 roll around console No LN2 w/ digital auto ranging & Alcatel direct drive pumps
|
$10,950
|
|
VLD420
|
Varian 936-71SP roll around console No LN2 with direct drive pumps
|
$11,950 |
|

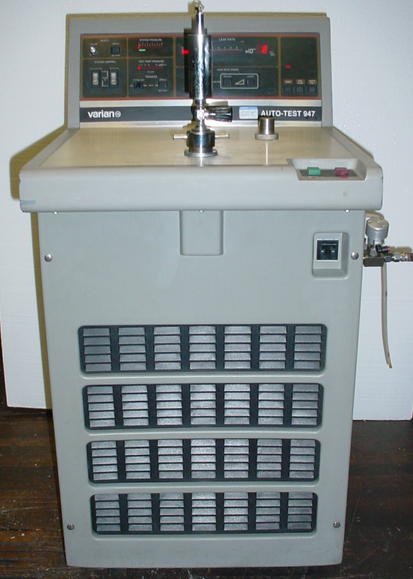

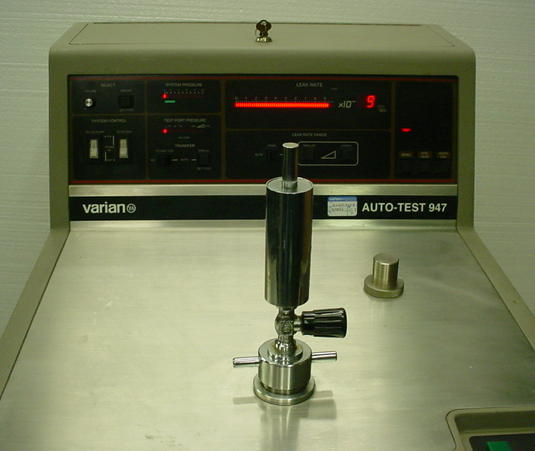

VLD425
|
Varian 947 auto test leak detector with roll around console No LN2
with 7cfm direct drive pumps. 115 volts
PIX2 New Arrival |
$15,000 |
VEECO
|
VLD440
|
Veeco
MS17AB roll around console with10.6CFM rough pump
|
$9,450
|
|
VLD460
|
Veeco
MS18AB roll around console with110 l/s turbo & 5.6CFM rough pump
|
$13,500
|
|
VLD480
|
Veeco
MS90AB roll around console with 5.6CFM rough pump
|
$5,550
|
|
VLD500
|
Veeco
MS170AB roll around console with digital auto ranging & 10.6CFM rough pump
|
$11,000
|
LEAK DETECTOR ACCESSORIES
CEC/Dupont
|
VLD540
|
24-004Aauxiliary cold trap
|
$495
|
|
VLD550
|
24-026audio alarm
|
$395
|
|
VLD560
|
24-0413 valve assembly
|
$495
|
|
VLD570
|
remote for 24-120B
|
$895
|
|
VLD580
|
base plate Adaptor for 24-120B 12" square aluminum
|
$185
|
Leybold
|
VLD600
|
quick test sniffing probe w/ calibrated leak NEW
|
$2,250
|
Varian/NRC
925 Series
|
VLD640
|
double inlet valves NEW
|
$265
|
|
VLD650
|
left or right hand manifold extensions NEW
|
$125
|
|
VLD660
|
right hand, right angle manifold extensions NEW
|
$165
|
|
VLD670
|
25 ft. leak rate indicator extension cable NEW
|
$85
|
Other parts available
936 Series
|
VLD700
|
Varian PT#0991-K3393-301 built-in air compressor
|
$350
|
|
VLD710
|
Varian PT#0991-K3039-301 built-in helium leak & auto shut off valve
|
$395
|
|
VLD720
|
Varian PT#0991-K4434-301 auto-coupling test port |
$1,500 |
|
VLD730
|
Varian PT#0991-K1889-305 Superprobe sniffer probe
|
$395 |
VEECO
|
VLD800
|
MS17C backfill station w/ bell jar & 2.1CFM rough pump
|
$1,950
|
|
VLD810
|
diffusion pump for MS90 w/o heater NEW
|
$225
|
|
VLD820
|
Polycold P75-T/C chiller w/ cold trap insert
|
$1,495
|
OTHER LEAK DETECTION EQUIPMENT
|
VLD1000
|
Intertest 1014BX scintillation counter system
|
$1,750
|
|
VLD1025
|
Intertest 1014CII-He helium fine leak pressurization system w/ dual 12" ID 30" deep ss activation chambers, microprocessor controlled, GP
Convectron gauging & 7CFM mechanical vacuum pump, 120/60/1, Mil-std 750C & 883C
|
$17,500
|
|
VLD1050
|
Trio Tech G-202 1 gallon bubble tester
|
$1,450 |
|
VLD1060 |
Trio-Tech G-203 bubble tester with G-233F filtration system and Galden D-02 and
DET fluid. PIX2
New Arrival |
$3,250 |
|
VLD1075
|
Trio Tech A481-501 bubble tester 3.4 gallons uses Fluorinert
|
$3,250
|
|
VLD3020
|
Varian/NRC3117 high vacuum station designed for leak detection of Helium pressurized components or vessels. Includes: 18" dia x 20 ½" tall ss chamber w/ electromechanical hoist on 20" ss baseplate. Pumping system consists of Varian M6 diffusion pump rated at 1500 l/s air, an NRC/Varian 316 LN2 baffle electropneumatic valves w/ sequencer & 17CFM mechanical roughing pump. A combination cold cathode discharge gauge & 2 position thermocouple gauge is also included. HELIUM MASS SPECTROMETER NOT INCLUDED
|
$10,500
|
| VLD3040 |
Aetrium/Web Tech 8050 dual chamber conditioning system, 8" diameter, helium and
fluid infusion. 115 volts. Includes instruction manual.
PIX2
PIX3 |
$3,250 |
| VLD3050
|
Aetrium/Web Tech 8000 gross/fine leak conditioner, with Alcatel direct drive 2008A 2 separate chambers plus control console. 14" dia x 18" deep Uses helium and flourocarbon liquid
PIX2
PIX3
PIX4
PIX5
PIX6
PIX7 |
$7,500
|
RESIDUAL GAS ANALYZERS & PARTIAL PRESSURE INDICATORS
|
VGA100
|
Ametek/Dycor
|
M100 MBHCD residual gas analyzer system, 100AMU, cart mounted, Faraday cup & electron multiplier, w/ Balzers TPU50 turbo, Balzers TCP040 control & Edwards E2M-1 backing pump & aperture bypass manifold
|
$7,500
|
|
VGA125 |
Ametek/Dycor |
D100P system 1000 quadrupole power supply Quad Link upgrade, system 2000
software & M106; 100 AMU faraday cup detector |
$2,950 |
|
VGA150
|
Balzers QMG64
|
partial pressure analyzer 1-64AMU w/ control, analyzer electronics & Quadrupole/Faraday analyzer
|
$2,450
|
|
VGA200
|
Balzers QMG511
|
Quadrupole Mass Spectrometer system 1-511 AMU, w/QMA150 analyzer w/90° off- axis SEM and cross beam ion source w/ion lens. The pumping system consists of a Balzers TPU170 turbo pump rated at 170 l/s for N2 w/solid state frequency converter, a Balzers DUO1.5A backing pump and turbo vent control. A heated capillary gas inlet system with a GIC10 control and a dedicated DUO1.5A mechanical pump is also provided. A digital ionization high vacuum gauge & video display are also included. All components are mounted in a roll around 60" tall 19" rack which is 32" deep. |
$12,500
|
|
VGA250
|
Inficon Quadrex 100
|
residual gas analyzer 1-100AMU w/ Faraday cup head SCU & cable
|
$3,250
|
|
VGA255
|
Inficon Quadrex PPC
|
partial pressure controller sysem 1-100 AMU w/electron multiplier/araday cup sensor, scu & cables
|
$5,250
|

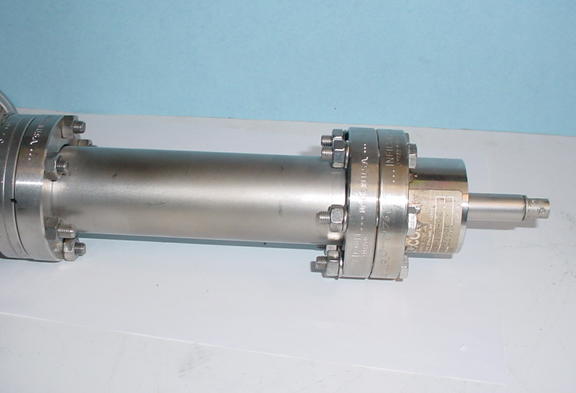

| VGA260
|
Inficon Quadrex 100
|
electron multiplier/Faraday cup sensor- 100 AMU |
$950 |
|
VGA262
|
Inficon Quadrex 200
|
residual gas analyzer 1-200 amu w electron multiplier/faraday cup sensor, scu & cable
|
$4,450
|
|
VGA265
|
Inficon Quadrex 200
|
electron multiplier/Faraday cup sensor- 200 AMU |
$1,250
|
|
VGA300
|
Inficon IQ200
|
residual gas analyzer 1-200AMU w/ electron multiplier head RF module & cables
|
$2,500
|
|
VGA350
|
Inficon Transpector
|
H300 CIS 1-300AMU system includes: sensor, manifold, heating jacket, power supply, control system w/ air cooled, oil lubricated TMP150 turbo pump & controller w/ sensors w/o mechanical pump or software
|
$13,500
|
|
VGA400
|
Inficon IPC2
|
pressure converter, air operated w/ 150 millitorr orifice w/o turbo pump NEW
|
$1,295
|
|
VGA425
|
Inficon IMC2
|
memory copier for IQ200
|
$495
|
|
VGA450
|
SpectraMass Dataquad
|
DAQ200/DXM residual gas analyzer 1-200AMU complete w/dual detector, Faraday/Multiplier- RF head & cables
|
$3,450
|
|
VGA468
|
UTI Qualitorr |
residual gas analyzer, 1-200 AMU with digital process monitor, RF generator, leak hunter, sampling manifold, Balzers TPU050 turbo pump with control, 3.4 CFM direct drive backing pump enclosed in roll around 19" electronics rack
|
$8,500
|
|
VGA475
|
UTI 100C
|
100C residual gas analyzer 1-300 AMU system w/control, RF module, chart recorder & storage scope, head, cables, low pressure sampling system w/Balzers TPU170- 170 l/s turbo pump w/control. A Spetralink computer interface is also included. Backing pump Additional
|
$8,500
|
|
VGA500
|
Varian 973-5028
|
"Smart Gauge" residual nitrogen control unit only
|
$595
|
|
VGA505
|
Varian 973-5028
|
"Smart Gauge" residual nitrogen analyzer complete with control unit sensor and cable
|
$1,900
|
|
VGA525
|
Varian 974-0036
|
partial pressure gauge unit & gauge tube w/o magnet
|
$900
|
|
VGA550
|
Veeco SPI10 Monopole
|
residual gas analyzer 1-200AMU- controller only- as-is
|
$495
|
|
VGA600
|
VG Instruments SX200
|
residual gas analyzer 1-200AMU- controller only- as-is
|
$795
|
978-744-3546 6/1/08
www.emcgrath.com
|
|
