Used Vacuum Bell Jars
E. McGrath Inc
35 Osborne St., Salem MA 01970
|
VBJ150
|
10 3/8" ID x 31"
|
tall NRC ss crystal growing water traced bell jar w/three 3" ID viewports &
smooth flanged bottom
|
$ 995
|
|
VBJ220 |
18 3/4 ID x 25"
|
tall Edwards E19E2 stainless bell jar, water traced with two 3 3/4" ID viewports,
O-ring sealed with side mount for hoist |
$ 1,050 |
|
VBJ250
|
24" ID x 30"
|
tall VAC ss bell jar, water jacketed w/Airco VV400 film shutter viewport w/side
hoist mount
|
$3,100
|
|
VBJ275
|
24" ID x 32"
|
tall custom stainless bell jar, water traced with 5/8" OD copper tubing,5" ID
viewport, O-ring sealed with eyehook
|
$ 995
|
|
VBJ300
|
23½" ID x 28"
|
tall Custom ss bell jar, water traced w/removable 18" OD top flange, eyehook &
two 3" OD viewports
|
$1,250
|
|

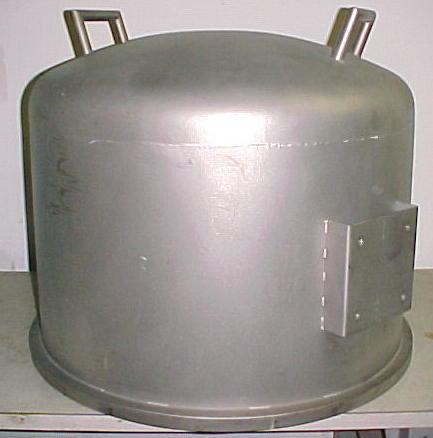

VBJ325
|
23¾" ID x 20"
|
tall custom ss bell jar, O-ring sealed with side mount for hoist
|
$ 795
|
|
VBJ375
|
24" ID x 30"
|
tall Ultek stainless bell jar. L boot gasket style, with two 6" OD Conflat
ports, now with solid blanks. Hoist mounting tabs on side.
PIX2 Pyrex viewport $225 extra
New Arrival |
$2,650 |
|
VBJ400
|
25½" ID x 40"
|
tall CHA Model BJ2540WC ss bell jar water traced w/4" ID viewport, two 2 ¾"
conflat ports in top & side mount for hoist
|
$2,850
|
|
VBJ450
|
24" ID x 33"
|
tall custom ss bell jar, water traced w/eye hook at top & "O" ring
sealed, 5½" ID side port. Eye hook adds 2 inches to the height. The water cooled
base plate flange is 29" outside diameter. |
$1,150
|
|
VBJ500
|
19½" ID x 16"
|
tall ULVAC ss low profile process chamber w/hinged, dished "O" ring sealed
top. Entire chamber is water traced w/multiple conflat & compression style
ports requires "L" Boot gasket to seal to baseplate (Not Included)
|
$1,750
|
|
VBJ550
|
23¼" ID x 32"
|
tall mild steel bell jar "O" ring sealed w/eye hook at top & 2½" ID viewport
near bottom
|
$ 950
|
|
VBJ600
|
24" ID X 30"
|
tall NRC mild steel bell jar "O" ring sealed w/eye hook at top & 2½" ID
viewport near bottom
|
$ 950
|
|
VBJ610
|
25"ID x 30"
|
tall CHA style ss bell jar, w/o water tracing, with 4" ID viewport & top port
|
$2,250
|
|
VBJ650
|
30" ID x 32"
|
tall Custom ss bell jar w/one 3/4" ID compression fitting & one 4" ID viewport
w/top fixture for hoist mount (CVC & others) 164 pounds.
PIX2
PIX3 |
$2,450
|
|
VBJ651 |
Baseplate
|
Aluminum baseplate adaptor for above, allows installation on standard 20" OD
baseplate. 32-3/4" OD, 1.125" thick, with 18" ID and oring and clamps to fasten
to baseplate. has many feedthroughs. Now with removable black anodized plate.
PIX2 |
$975 |
|
VBJ700
|
32½" ID x 36"
|
tall mild steel bell jar "O" ring sealed water traced. w/eye hook & four 2"
ASA ports equidistantly spaced near bottom of jar.
|
$2,250
|
|
VBJ800
|

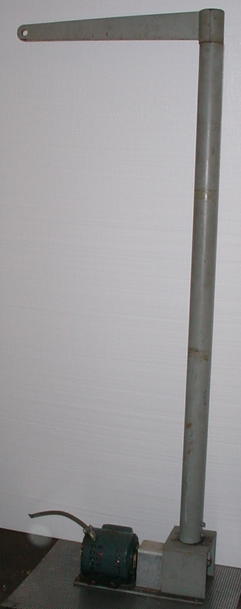

LPH500
|
TorrVac LPH500 bell jar hoist, ¾ HP 208/220/440/3 62" lowered height. 500 pound
capacity. With two limit switches. 31" travel. |
$1,750 |
NOTE:

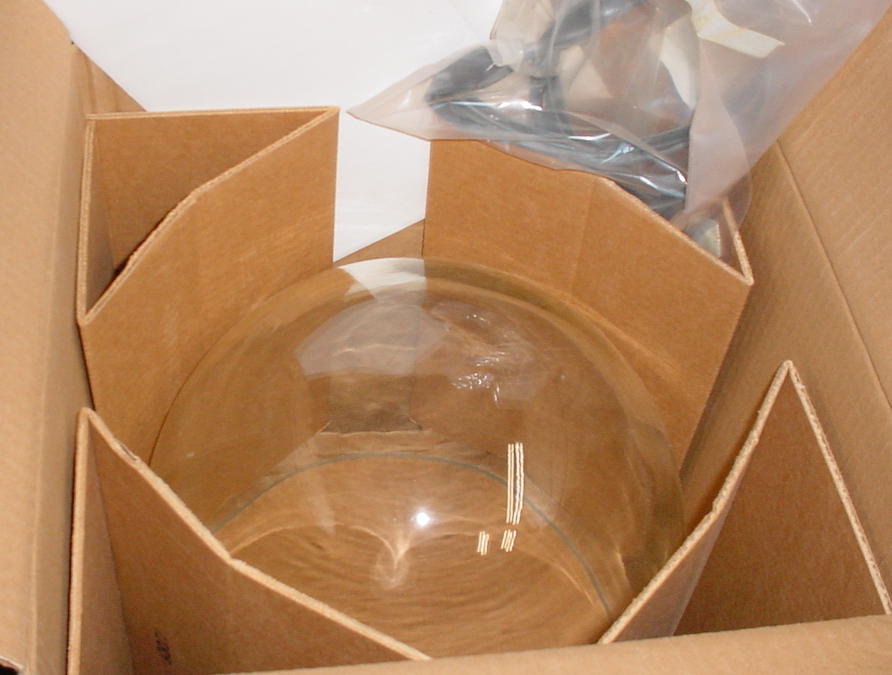

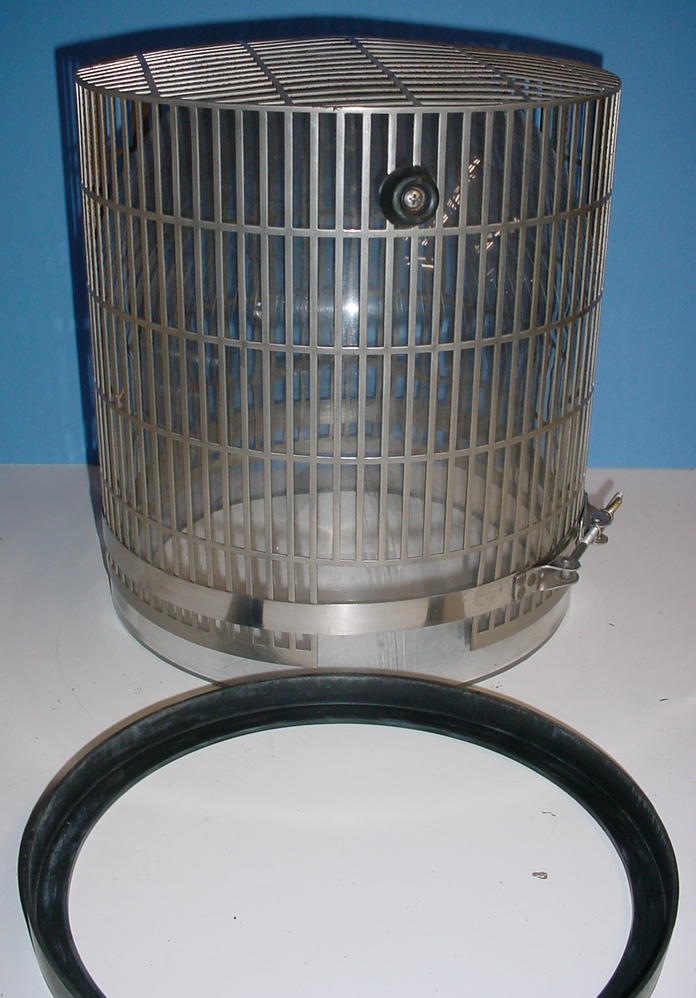

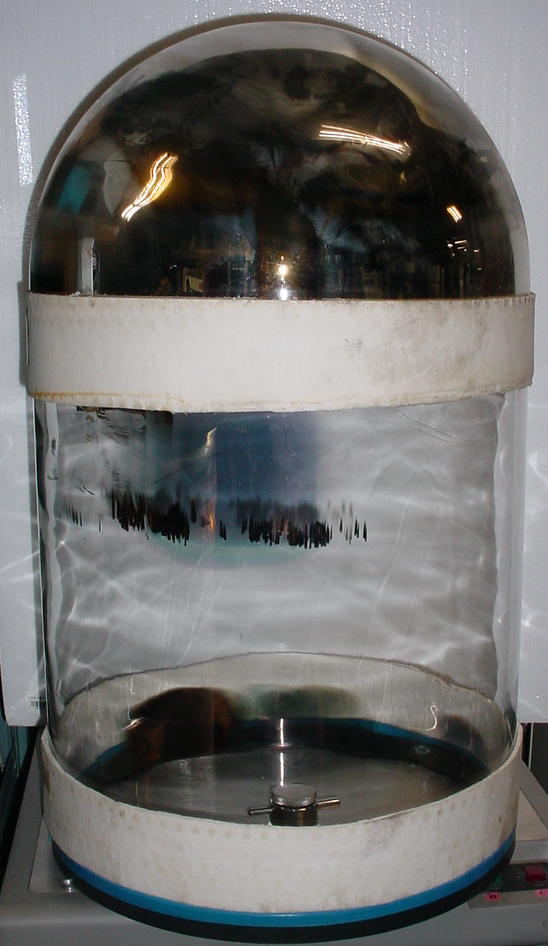

Pyrex Bell Jars and implosion cages in various dimensions normally available.
978-744-3546 6/12/08
|
|
