Used X Y POSITIONERS & STEPPER MOTORS
E. McGrath Inc, 35 Osborne St., Salem MA 01970
|

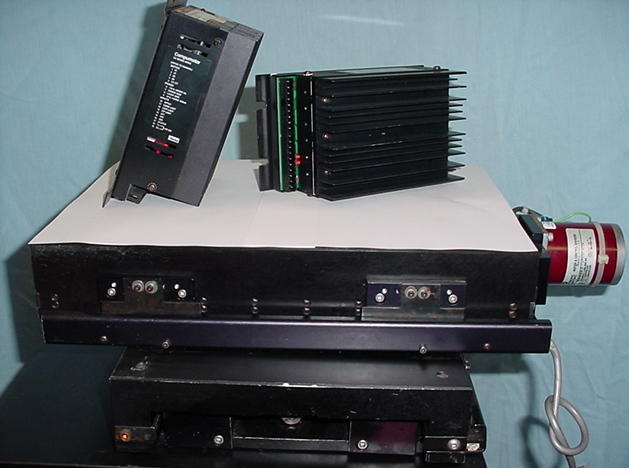

LBG002
|

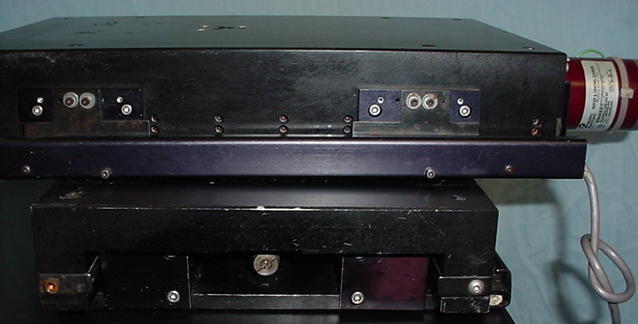

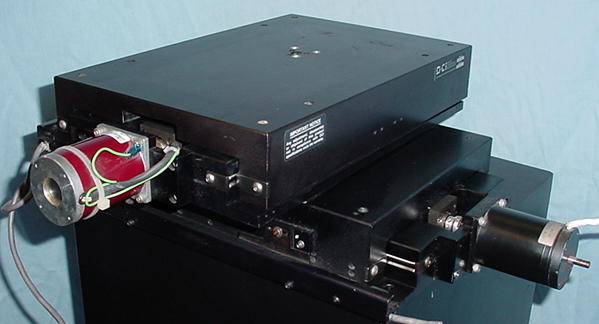

DCI 2 axis positioning stage, DC-1010R, 10"x10", cross roller bearing, 5
pitch lead screw. Compumotor stepper motors & CX microstep drives, RS232
interface, precision, 2 micron. Dimensions: 10 x 15 x 6" high, plus NEMA 21
motors. 81 pound total weight.
PIX2
PIX3 |
$5,500
|
|

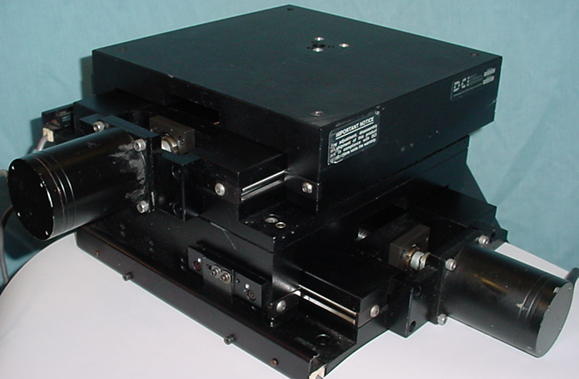

LBG003
|
DCI 2 axis positioning stage, DC-66R, 6"x6", cross roller bearing, 5 pitch Acme, Compumotor stepper
motors & CX microstep drives, RS232, precision . Dimensions: 10 x 10 x 6" high
plus NEMA 21 motors. 57 pound total weight. |
$4,250
|
|
LBG004 |
Daedal two axis round rail table 4 x 12 x 18" travel X, 3 x 6 x 12"
travel Y, 5 pitch ball screw, bellows way covers. Probable model numbers:
506016ST & 51224ST. Parker DS2301 drivers and PC23 adaptor.
With DRC encoders. Runs from a PC, not included. Longer travel w/o bellows. |
$4,500 |
|
LBG005
|
Daedal single axis square rail table, Model 4121001R100E 100" travel, 12" wide, 2½" recirculating ball screw 2 pitch, 1560# Compumotor KH-720 brushless servo motor, 2.78 kw brushless resolver feedback,

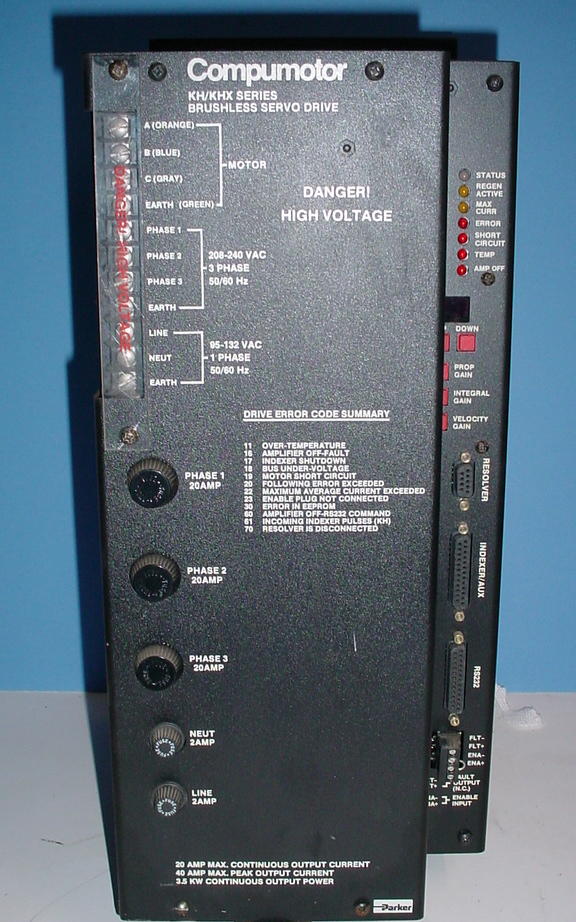

Compumotor KH series drive w/RS232C interface, 230/60/3 input w/cables
& manual. PC & software not included.
PIX2
PIX3
PIX4
PIX5 |
$8,250
|
|
LBG006
|
DCI 2 axis stage, 5"x5" w/Compumotor M57-83 steppers & CX microstep drives
|
$3,500
|
|
LBG007A
|
Pr Kensington 1 axis 8500-10 stages, EG&G Servo encoder & 400A control, Mfg 1986, no local control
|
$6,750
|
|

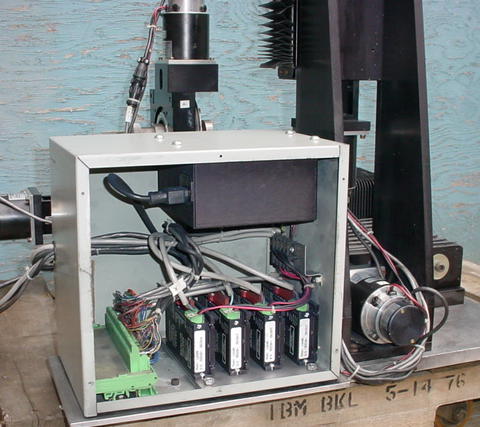

LBG008 |
Lintech 42392 positioning system, round rail with ball screws, similar to series
90. 9" x, 9"y and 4" z with Parker rotational stage. X stage base is 19 x 19".
With K&D Magmotor brush servo motors C33-G-002, NEMA 34 and Sumtak encoders. Has
4 Advanced Motion Controls
12A8B brush type PWM servo amplifiers with 24vdc supply. No other
controls. PIX2
PIX3 |
$4,750 |
|
LBG010
|
Velmex Unislide A4009DE
|
$150
|
|
LBG011
|
Stelron 5" travel positioner, ES5, dual ball slide
|
$295
|
|
LBG012
|
Automation Gauge ball slides, L-31
|
$75
|
|
LBG013 |

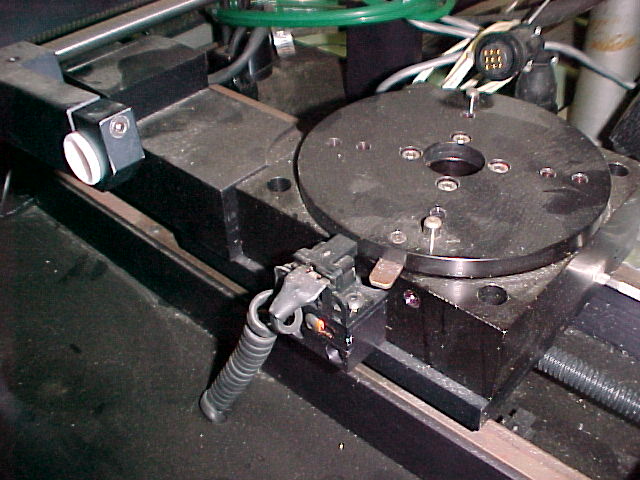

Daedal Rotary stepper stage |
$595 |
|
LBG014
|
Joel JSM3 electron microscope vacuum stage, 25mm-X 10mm-Y, 180 degrees rotate
+/- 45 degrees tilt |
$950
|
|
LBG015
|
Teledyne 4" x 5" stepper motor driven stage, w/o control
|
$975
|
|
LBG070
|
Electro-Craft Servo Amplifier, LA-5600
|
$325
|
|
LBG098 |

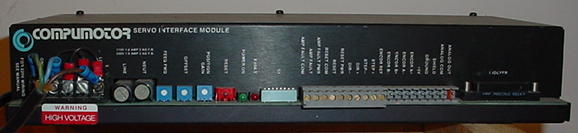

Compumotor SIM servo interface module 6 available |
$300 |
|
LBG099 |
Compumotor M57-83-12R stepper motor and driver |
$350 |
|

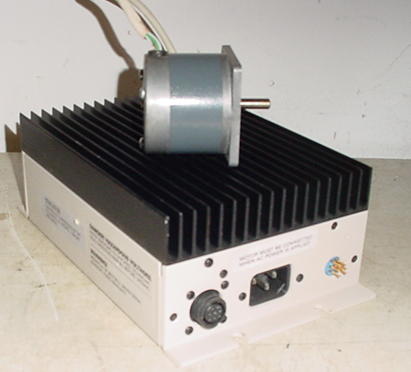

LBG100
|
Compumotor M57-51 stepper motor w/drive, NEMA23, also 057051 |
$350
|
|
LBG101
|

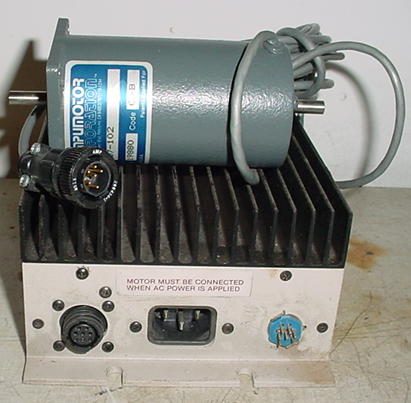

Compumotor M57-102 stepper w/drive, NEMA23, 120 in-oz
|
$375
|
|
LBG103
|
Compumotor Plus CPL57-120 motor, resolver & controller RS232C interface new take off 3@
|
$1,000
|
|
LBG104
|
Compumotor A/AX83-135 motor, 400 oz-in, w/AXL microstep drive, RS232C |
$1,200
|
|
LBG105
|
Compumotor 057051 motor, 40 oz-in w/CX microstep RS232C |
$700
|
|
LBG106
|
Compumotor 057102 motor, 120 oz-in, w/CX microstep drive, RS232C |
$750
|
|
LBG108
|
Daedal MC7000 stand alone positioning system, up to 4 axis w/4000 control & RS232C
|
$2,500
|
|
LBG108A
|

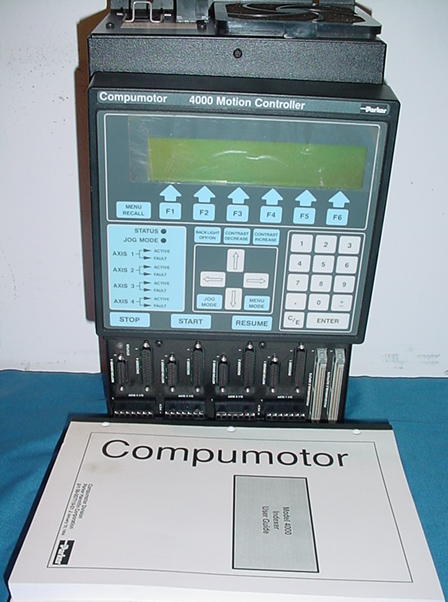

Compumotor 4000 indexer, IEEE 488, used, tested |
$2,000 |
|
LBG109
|
Stahl Research 507 computer controlled X-Y stage controller
|
$725
|
|
LBG110 |
Superior Electric MITAS PSX100 programmable control RS232C |
$550 |
|
LBG110A
|
Superior POM155 driver, 150 watt NEW
|
$575
|
|

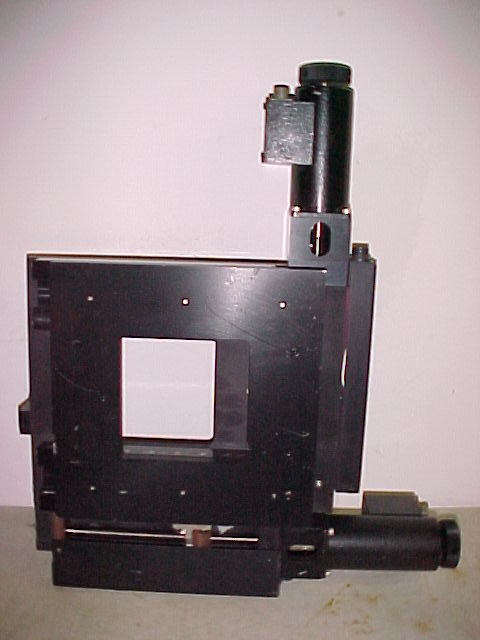

LBG112
|
Daedal open frame linear table, 6"x 6" 310062S-20E w/steppers, 5 pitch |
$3,250
|
|
LBG116
|
Neat XYL-2727SM., 24x24" travel , cross roller bearing stepper stage, 2 pitch
Acme screw w/DPS2000IHS digital positioning system on rugged machine stand
|
$6,500
|
|
LBG117 |
Pacific Precision Labs PPL XYZ stepper stage, 24 x 24 x 2". Consists of
ST-DS-24-S200-H, ST-DS-24-S200-V and ST-ML-20-S200. 6" width, 5 pitch ball
screw, Compumotor M57-51-R13 motors, drives and PC23 indexer board to install in
a PC, not included New Arrival |
$4,950 |
|

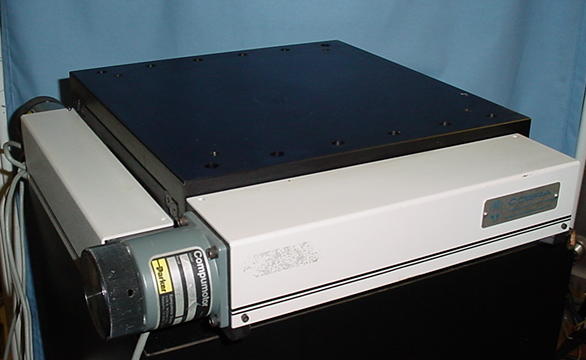

LBG118
|
Pacific Precision Labs (Cobra) 6"x6" stepper stage, cross roller, 2 pitch ball screw Compumotor LE57-51 motors & drives,
12 x 12 x 4" thick. |
$4,250
|
|
LBG119
|
Automation Unlimited/Icon X-Y steper table w/Z axis, 24x24" travel, Thompson style rod slides, 4 pitch ball screws on rugged machine stand
|
$5,500
|
|
LBG120 |
Neat 4" 1 axis stage, CR bearing LM-400-SM, 10 pitch screw with limits 4 x 6 x
3" thick |
$675 |
|
LBG121 |
NEAT XY-6080SM monolithic 4 x 6" stepper
motor stage, ball bearing, 5 pitch screw, NEMA 21 motors and limit switches. 6 x
8 x 3-1/5" high overall plus motors |
$1,250 |
|
LBG123
|
Daedal MC2103 3 axis indexer w/2 HS drives
|
$1,400
|
|

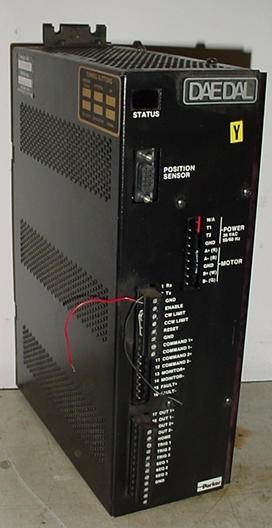

LBG124 |
Daedal DS2301 motor controller with RS232. 36VAC input |
$725 |
|
LBG128
|
DCI HMP1819, open frame table X-Y positioner, takes Nema 21 motors, 20 ½ x 20 ½ open area
18 x 19 inch travel. Two limit and one home hall effect sensor on each axis.
Outside dimensions: 25-3/4 x 25-3/4 plus 3" for the screw drive. 6" thick.
New
Surplus Net wgt approx 100#
PIX2
PIX3 |
$3,950
|
|

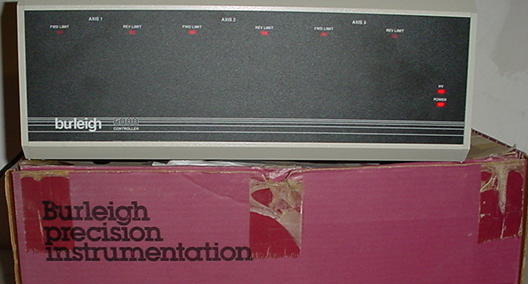

LBG130
|
Burleigh Inchworm 6000-1-0-1-1; single axis, open loop, no display. 15 pin aux,
25 pin manual. Controller
for use with 6003 joystick or 6005 handset, or TTL control
NEW PIX2 |
$1,250 |
|
LBG132
|
Klinger CC1.1, single axis controller, $550 Klinger CC.2, two axis controller
|
$ 825
|
|
LBG134
|
Newport MM3000-2, 4 axis controller , for two motors, with pendant. RS-232C & IEEE488
|
$1,250 |
|
LBG136 |
pair of LinTech 3/4 rails with ball slides, 8 feet long overall |
$750 |
|
LBG138 |
Panametrics PCF120-3 xy stepper
stage, 12 x 12 " capacity |
$1,250 |
|
|
5/15/08 978-744-3546 |
|
|
|
